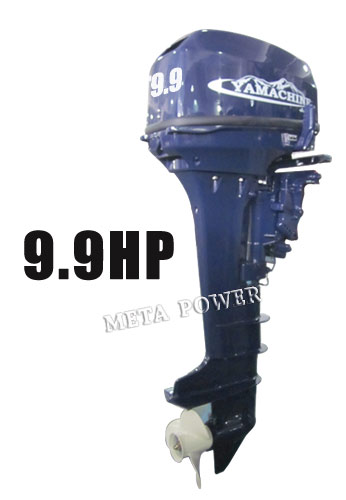

Specifications 9.9HP
|
1. Outboard Motor 9.9HP
|
2. Pleasure, Manual handling, Manual star
|
3. Motor type:2 Cylinder
|
4. Displacement(cm3):246
|
5. Bore * Stroke:56.0X50.0
|
6. Gear Ratio:2.08(27/13)
|
7. Max.rpm Range:5500
|
| 8. Idling rpm:750±50 |
| 9. Max. Prop Shaft Output:11(15)@5000 |
| 10. Alternator output:12 Volt 6 Amper (80W) |
| 11. Transom height:440mm |
|
| |
|
 |
Specifications 15HP |
1. Outboard Motor 15/18HP
|
2. Pleasure, Manual handling, Manual star
|
3. Motor type:2 Cylinder
|
4. Displacement(cm3):246
|
5. Bore * Stroke:56.0X50.0
|
6. Gear Ratio:2.08(27/13)
|
7. Max.rpm Range:5500
|
| 8. Idling rpm:750±50 |
| 9. Max. Prop Shaft Output:11(15)@5000 |
| 10. Alternator output:12 Volt 6 Amper (80W) |
| 11. Transom height:440mm |
|
| |
|
 |

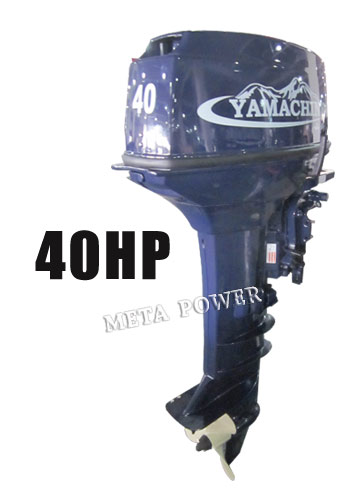

Specifications 40HP |
1. Outboard Motor 40HP
|
2. Pleasure, Manual handling, Manual star
|
3. Motor type:2 Cylinder
|
4. Displacement(cm3):703
|
5. Bore * Stroke:80X70
|
6. Gear Ratio:2.0(26/13)
|
7. Max.rpm Range:29.4(40HP)@5000
|
8. Idling rpm:1000±50
|
| 9. Alternator output:12 Volt 6 Amper (80W) With Rectier /Regulator |
| 10. Transom height:893mm |
|
| |
|
